16 Channels
receiver
4 Channels
transmitter
16 Channels
transmitter
16 Channels
receiver OEM
16 Channels
receiver

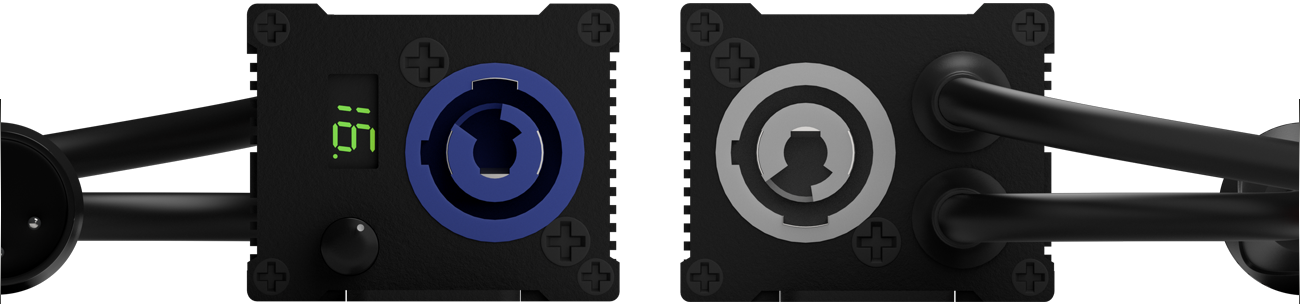

ReceiverPLCof an audio output selectable among a maximum of 16 channels available on the linePLC.
selection byswitch16-position rotary and channel indicator display.
Allows to receive the signalPLCand forward it to the next receiver, regenerating the communication.
Auxiliary power output for self-amplifying box with connectionIECeitherpowerconand balanced audio withXLR3aerial.
24Bits/96kHz quality and latency less than 28 μSeg. Robust black anodized aluminum housing.
16 Channel receiver
4 Channels
transmitter
Portable transmitter unit with 4 audio channels and 2 outputsPLC.
It has 4 audio input channels with 24Bit/96kHz quality, two outputsPLCthat allow a maximum load of 16A, which enables the use of numerous receiversPLCin each of the output lines, having in all of them, available the signal of the 4 audio input channels. Overload protection.
4 Channel transmitter
16 Channels
transmitter
PLC transmitter in formatRack.It has 16 audio input channels with 24Bit/96kHz quality, 16 audio channels and 6 outputs.PLC.
6 exitsPLCthat allow a maximum load of 16A per output, which enables the use of numerous receiversPLCin each of the output lines, having in all of them, available the signal of the 16 audio input channels.
Single-phase or triphasic power supply. Redundant power supply for added safety.
16 Channel transmitter
16 Channels
receiver OEM
PLC receiver designed to be integrated into a self-powered box, with a selectable audio output, among a maximum of 16 channels available on the PLC line. Selection by means of a 16-position rotary switch and channel indicator display. It allows receiving the PLC signal and forwarding it to the next receiver, regenerating the communication. Bypass relay to disconnect the audio input from the box when there is PLC communication. 24Bits/96kHz quality and latency less than 28 uSeg.
